NetNewsWire style with free cookies

Posted
8:14 AM 4 February 2006
Updated
8:51 PM 29 May 2011

This is a relaunch of Ollicle Flex, a style for NetNewsWire which makes use of cookies. No doubt you are scratching your head, ‘I thought styles were written with CSS’, you may think, ‘What have cookies got to do with how my feeds look’.

If you’re not particularly interested in the details of why and how just download Ollicle Flex and try it for yourself. Remember to enable JavaScript for News Items to enable the new features. Read on for the nitty gritty.

The process of creating this style didn’t start with my hands in the cookie jar - these tiny bits of saved information turned a solution to a problem into a feature.

The problem with large images

A kind commenter highlighted an issue (thanks Dean), with an earlier version of Ollicle Flex, where wide images are overlapped by the info text block on the right. There’s some CSS that ensures you can read the text if you hold your cursor above the info, but this background colour change does nothing to prevent the distraction to the image itself. Beyond that (until recently) I had thrown this particular problem into the too-hard basket. Most feeds I regularly read keep their images within a manageable size.

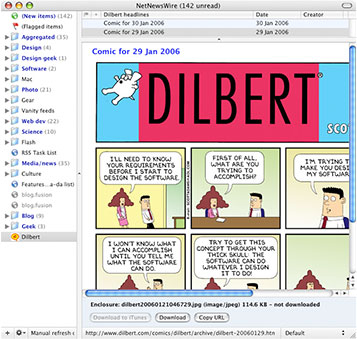

Large image cropped using Default style
Even without the distraction of text overlapping them, even regular styles will obviously crop large images.

DOM scripting to the rescue

Armed with a copy of the wonderful DOMscripting I decided to tackle this problem from a different angle. Perhaps the images could scale to fit the available space. This would fit nicely into my vision for Ollicle Flex. Making this happen within a flexible layout proved tricky, I suspect I may have stumbled across a webkit bug or two. I’ll leave the tedious details and workarounds for a another post, maybe. In the long run I got it to work nicely!

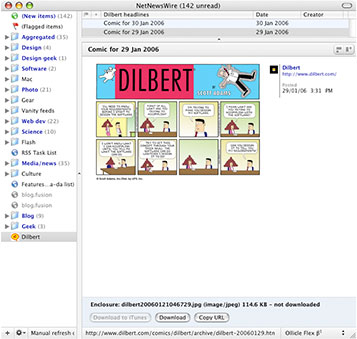

Large image scaled using Ollicle Flex - 2 column view
When using Ollicle Flex large images are scaled to fit the width of the column.

All I need now is a handy way to view the images at the larger size, should I want to.

Considering Lightbox

Originally I planned to adapt the Lightbox JS technique. Clicking on a scaled down image would ‘pop’ it up to a maximised size overlaying the feed. Seemed doable in theory, but considering the scenario of clicking on a large image that was already linked made my head hurt.

I decided that Lightbox, as cool as it is, was overkill for this problem and ultimately not really ‘flex’. I’ll leave the Lightbox for NetNewsWire style for someone else to wrestle with.

Width control and layout options

Something reminded me that I already had an ‘alternative’ layout which positioned the meta information out of the way of wide feed content. Setting NetNewsWire’s layout to the Widescreen View when using Ollicle Flex (or Crisp) reconfigures the columns to a more conventional single column arrangement where the meta information appears after the content of the feed. The widescreen layout best suits a narrower HTML pane - when including a second column is too tight.

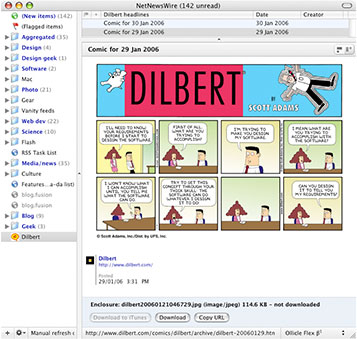

Large image scaled using Ollicle Flex - 1 column view
Switching to the single column layout provides more space for optimal image width.

What the single column layout is also really good for is ensuring the content is as wide as it can be in a given window width. In the typical NetNewsWire window arrangement I see the length of text lines which span the full width of the HTML pane as an obstacle to easy reading. Ollicle Flex makes these long measures of text bearable by adding space between the lines (line-height) as you widen the window.

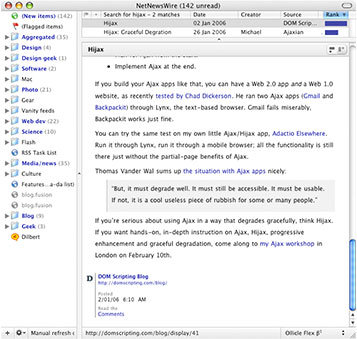

Tighter line-spacing with narrower column width - 1 column view Looser line-spacing with wider column width - 2 column view
Text line-height is adjusted in response to changes in column (and window) width.

Regardless I knew it would be nice to have the option to switch between a wide, single-column, view and a more comfortable to read double-column. The question was how to make this switch painless. Changing NetNewsWire’s view from Traditional to Widescreen to do this is stupid; Toggling between two styles with NetNewsWire’s style menu is too fiddly; The answer required a simple flip between these layouts with a single click.

Adding some buttons

Access to the HTML template, combined with the power afforded by JavaScript to further manipulate the markup, means that adding clickable bits within the feed reading pane is really easy. This doesn’t make it a good idea to go button crazy! Brent has worked hard to keep NetNewsWire’s interface beautifully clean - I’m aiming for a seamless extension of that.

With this in mind I fashioned a pair of buttons that when clicked, change the ID on the BODY element within the displayed HTML. From here CSS takes the reins and the change is reflected in the layout. Sweet! Two styles for the price of one.

Default button state Double column view Single column view
Subtle buttons on the Ollicle Flex title bar.

With some road testing I discovered that it was common to want to view every item of a particular feed with the same alternative layout. For example, every entry in a cartoon feed is likely to have a wider than normal image, and as the view is refreshed each time a new one is selected; It would be necessary to click the button for each individual item in the feed.

At this point I was ready to throw in the towel. All that clicking would quickly get very tedious. Without a means to make the layout selection persistent my hard work was as good as scrap.

Eureka! Cookies!

When the idea of setting a cookie in the webkit driven news item view occurred to me I was dubious. Why would Brent enable such a feature? Then again, why would he bother disabling it? I tried it and it worked! No only does it work, the cookies are stored exclusively per feed. Perfect! This means when a cookie is used to store a layout preference it is only reflected in the display of that particular feed.

The next step

Although I’m looking forward trying a few more ideas that make use of JavaScript in a NetNewsWire style, I really can’t wait to see what people smarter than me come up with. Which reminds me; Brent, it would be nice to have an independent javascript file in the NetNewsWire style package. We have template.html and stylesheet.css perhaps behaviour.js would complete the family?

Further thoughts

4 December 2006

If you like Ollicle Flex be sure to check out the newer, flexier Ollicle Reflex.

Comments

  1. Commented
    8:14 AM 5 February 2006

    I’m looking forward to trying the new version. Not many people are pushing the boundaries of NNW’s stylesheets! You should know, though, that the download link in the post is currently broken—it’s got some extra cruft on the end.

  2. Commented
    8:14 AM 5 February 2006

    Thanks Brian, the link is now fixed.

  3. Numnuts
    Commented
    8:14 AM 7 February 2006

    Ollicle Flex and Ollicle Crisp are the only two stylesheets I use. These are great! Keep up the great work!

  4. Cliff
    Commented
    8:14 AM 7 February 2006

    Great Work! Thanks a lot!

  5. Tweaka
    Commented
    8:14 AM 20 February 2006

    You truly are the ollicle!

  6. David Enzel
    Commented
    8:14 AM 26 March 2006

    A beautiful and elegant style sheet. It is my favorite. Thank you!

  7. Alex Ruiz
    Commented
    8:14 AM 27 May 2006

    Hello,

    I’d like to say thanks for this great style. It really makes my news reading pleasant.

    Now, just a small request. When reading a long article, and using “space bar” to advance to the next page of the article, the page advances a full page. This is somewhat what it is expected, but at least for me, I don’t like reading to the bottom of the page and then advance. I would like that the page advance were not that long, safari doesn’t do the full page advance, as well as many netnewswire styles.

    Alex

  8. Commented
    8:14 AM 28 May 2006

    Alex: I’m aware of the page scroll puzzle. NetNewsWire 2.0 (and earlier versions) didn’t scroll the full height of the window. Some people, it turns out, considered this a problem not a feature!

    For example read the Update Jon Hicks added to the post of his NNW style:

    Update. Brent Simmons has asked me to produce a version without the fixed header and footer. Apparently, there is a bug in WebKit where scrolling goes too far when you have fixed elements. So here’s a fluid version with no fixed elements

    This is less of a problem for Ollicle Flex because of the relatively shallow height of the fixed bar - but I guess if you were to scroll a full page you would still potentially lose one line of text.

    NetNewsWire 2.1 includes a fix rather than a solution to this ‘problem’ to prevent styles with fixed elements clipping the content while enabling full pane scrolling:

    Description pane and the space bar

    The description pane now scrolls a full page when you hit the space bar.

    Previously, it was doing less than a full page because some style sheets have fixed items, and WebKit scrolling doesn’t take that into account.

    What NetNewsWire does now is look at the style sheet name to see if it should do a full-page scroll or a partial-page scroll. I don’t have a better way of handling this—and, obviously, it doesn’t work with any newly-created style sheets. (Which is okay, actually—I don’t want to people to make any new styles with fixed elements, because of the aforementioned bug. When they notice it doesn’t work right, maybe they’ll choose to do a floating version instead.)

    Of course it is not considered resolved:

    See NetNewsWire bug 3147

    Before this recent change, the problem/solution on my mind was calculating (and perhaps somehow visually indicating) where the page would scroll to when you hit the scroll bar. That only makes sense when that content is already visible in the description pane before you hit the spacebar. I didn’t get around to looking at it seriously enough to attempt to code something into the style.

    In conclusion, since this change of behavior is part of NetNewsWire, it’s out of my hands. Thanks for asking the question though, I’ve been meaning to tie these loose ends into an identifiable knot for a while. If you can think of a neat solution I’m sure Brent would be interested in a feature request.

    Oh, and thank-you for your kind words, not being a rock-star designer they are rare and cherised :)

  9. Dean Mayers
    Commented
    8:14 AM 11 October 2006

    At last, it’s fixed! I’m glad my comment could inspire you to tackle that problem.

    Really great work.
