It’s been a long time cooking, but I am finally taking version 6 of Ollicle Reflex out of the oven.

Download and install

Download latest version: Ollicle Reflex

Double-click the unzipped .nnwstyle file and NetNewsWire will copy it to where it needs to be.

~/Library/Application Support/NetNewsWire/StyleSheets/

This style uses JavaScript to do some things CSS alone cannot. Make sure you enable it

  • NetNewsWire Preferences
    • Browsing
      • News Items
        • Enable JavaScript

Requirements

I have not tested this style extensively with anything other than the current version of NetNewsWire (3.1.3) and Safari 3 (which determines the version of WebKit NetNewsWire is sporting).

Note: styles for NetNewsWire 3 do not affect the Combined view - only the Traditional and Widescreen views.

Key features

  • Simple clean style

    Doesn’t get in the way of your choice of feed reading font and size. New for Version 6: added some simple styling to make data tables easier to read.

  • Clever image handling

    Large images are scaled to fit available space. New for Version 6: automatic alignment of smaller images, avoiding awkwardly squashed text.

  • Automatic line height

    Optimises line spacing of the feed text to suit your window and font size. More about this: Flex CSS with JavaScript for better reading

  • Del.icio.us Tagometer

    The number of del.icio.us bookmarks for the linked webpage is displayed along with the most popular tags they assigned to it. New for Version 6: a little hackery to see through feedburner urls and a more compact and stylish look.

  • Tidy diff display for recent feed changes

    With Highlight Differences checked in NetNewsWires general preferences you can toggle between the current and previous version of a changed feed. New for Version 6: feed changes are highlighted in a vertical bar in the left hand column. Hovering the bar with your cursor highlights additions inline, clicking it hides additions and reveals the deleted content.

  • A choice of layouts

    Two layouts to choose from: One column (default for NetNewsWires Widescreen layout) with the feed info in the footer, or two column (default for the Traditional layout) with the feed info persistent in the right hand margin. New for Version 6: now possible to set a default irrespective of your choice of NNW layout (see below).

  • Dark or light theme

    Choose between the default white background or the image enhancing black background. New for Version 6: changed method for setting black as the default (see below).

  • Per feed layout and theme prefs

    Clicking the little button in the top right hand corner of the feed pane toggles the preference pop-up for your currently viewed feed. Cookies NetNewsWire shares with Safari are used to store your selection of layout or theme for any post from that feed. New for Version 6: the preference pop-up now scales nicely when you make the feed text bigger and smaller with Command +/-.

  • Customisable defaults

    New for Version 6: If you don’t like my selection of defaults in Ollicle Reflex I have made a few of the prefences more easily configurable. I have removed the unintuitive hack for changing the default theme (adding “Black” to the filename of the the nnwstyle package). Now you will need to roll up your sleeves and launch your text editor.

    Locate the Ollicle Reflex style package ~/Library/Application Support/NetNewsWire/StyleSheets/Ollicle Reflex.nnwstyle reveal it’s contents by right (or control) clicking it and selecting “Show Package Contents”.

    At the top of the contained “javascript.js” you will find values set within the curly brackets of var userPref = {};. To set a default layout you need to first uncomment the line by removing the // from the start of the line. Otherwise make sure you only edit what falls between the colon and the comma, and ensure you leave the quotes around the layout and skin names. Note the last item shouldn’t have a trailing comma.

    To see your changes take effect it is necessary to relaunch NetNewsWire so it can update it’s cache of the style.

    Maybe someday I’ll try my hand at making a small AppleScript app to edit these options in a more friendly manner. If in the meanwhile you manage to break it (the JavaScript elements of the style will stop working), you can always come back here and download the style again.

Screenshots

I’d love to have a screencast to give you a better preview of the style. For now here’s a few screenshots that illustrate the font size and layout flexibility. Although, rather than waste time looking at them, I recommend scrolling back up the top of this page and downloading it.

Widescreen NetNewsWire layout

One column layout by default

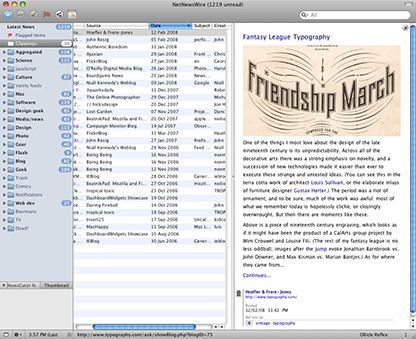

Widescreen one column layout

Larger font size

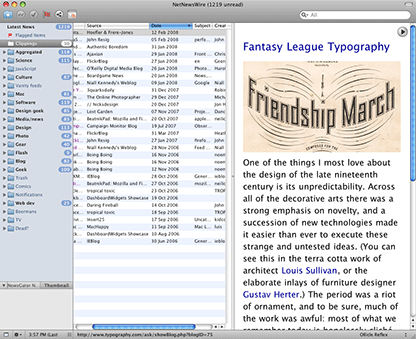

Widescreen one column layout with large text

Two column—smaller font size

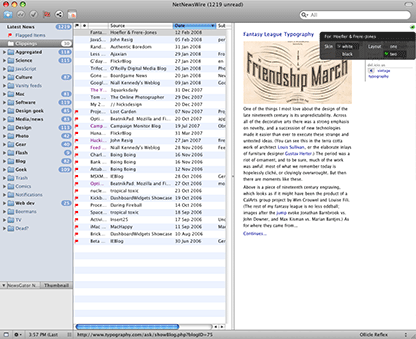

Widescreen two column layout with small text

Traditional NetNewsWire layout

Two column layout by default

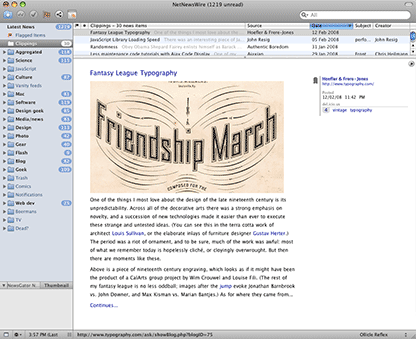

Traditional two column layout

Larger font size

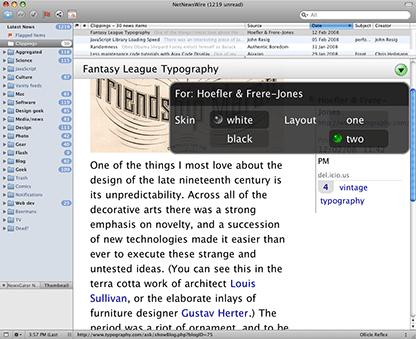

Traditional two column layout with large text

One column—arger font size

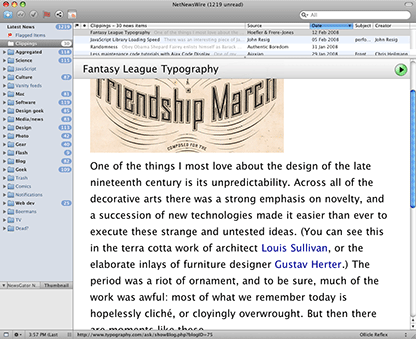

Traditional one column layout with large text

Black background

Traditional two column layout with black background

Scripting image layout is tricky

The logic executed to determine if an image should be scaled, aligned or left inline is much simpler than my initial somewhat ambitious scheme. I was driven crazy trying to get my head around the increasingly complex possibilities that cascaded from attempting to consider how to handle clusters of images such as those often found in the FlickrBlog.

After sufficient frustration I decided to focus on the more common occurrence of individual images of unpredictable dimensions alongside or within a portion of text. In a nutshell, the trade-off is that images that ought to sit nicely alongside each other in the one row are now forced under one another vertically. Very occasionally this looks broken.

Many bloggers continue to use double line breaks instead of regular paragraphs. I’ll give them the benefit of doubt by pointing my accusatory finger at their blogging tools rather than their shoddy HTML. Regardless, this made the task of ensuring associated text and images remained close in the layout particularly challenging. I delayed the release of this style until I came up with a means to get the better of this puzzle.

Why spend some much time on a simple looking style?

The consistency and convenience of feed reading comes with a price. In the thoughtfully constructed HTML content of a RSS feed I get the author’s words and images. I also get the emphasis and structure of their sentences and also links to their references. I get their meaning. I don’t get their CSS.

Many readers, who consider themselves visually or design literate, appreciate the aesthetic of the original artifact of the authors website. Many web authors are dismayed to see the effort they put into the presentation of their posts wasted to feed readers who never see the intended context of the site itself. These people don’t need help finding each other. For everyone else, there is work that can be done. The decisions that go into CSS in a modern website address more than just aesthetic vision of the author.

CSS is the primary tool for removng the obstacles to easy reading. A website built within a given layout and structure provides enough restrictions to widths and heights that effort put into molding the text to best fit it’s space is worthwhile. Outside of the cushy environment of the homepage, in the diverse wilderness of RSS and Atom consumption, these constraints lose relevance. Therefore, outside of the author’s site, so does the author’s CSS.

A feed reader style like Ollicle Reflex, if it is to to fulfil the needs of a discerning reader, needs to be much smarter than a style for an average blog. Not only is the content presented by a feedreader more varied (and often broken) than any given site, the user of a good feed reader has a great deal more control over how how these feeds are viewed.

These diverse demands, and my curiosity, have driven me to turn to JavaScript in Ollicle Reflex. CSS alone struggles to keep the content looking consistently considered.

Scratching my own back

Like NetNewsWire, Ollicle Reflex is free. I build it chiefly to scratch my own itches. That said, I love to know others are using it so bring on the feedback!

To all of you who have been suffienctly tempted by my words above to click out of your feedreader to load ollicle.com to best appreciate it’s full artistic intent… Lets say I have put a little more effort into Ollicle Reflex than my site in recent years :/ Might have to get back onto that.

Further thoughts

14 March 2008

Updated the download link above to version seven:

  • User preference for line-height now works (Thanks Matt).

  • Added user preference (in javascript.js) to hide/show the del.icio.us tagometer (Good suggestion Jonathon).

Comments

  1. segan
    Commented
    1:22 PM 8 March 2008

    Hi great work! I’ve been using this style for a while now, great to see an update.

    By the way, the download link is broken it should be http://www.ollicle.com/downloads/ollicle-reflex6.zip, not http://www.ollicle.com/download/ollicle-reflex6.zip

    You are missing an “s”.

    Cheers

  2. Commented
    1:22 PM 8 March 2008

    Download link fixed, thanks for catching that Segan!

  3. Superdotman
    Commented
    1:22 PM 12 March 2008

    It wouldn’t be easy to add Ollicle Wittrodt as a layout option, would it? I have a number of feeds which don’t provide the full content in the feed, and it would be great if I didn’t have to arrow into them or switch styles before reading them. I’d use Wittrodt constantly, but loading every page takes too long and Daring Fireball becomes unreadable.

  4. Commented
    1:22 PM 12 March 2008

    Superdotman: I am giving it some thought. The tricky bit is switching back to a different layout mode once Wittrodt is selected as the JavaScript replaces the page completely.

    Regarding Daring Fireball - I did notice NetNewsWire’s text zoom for the News Item pane works while in ‘Wittrodt mode’. Command + a few times to enlarge the text.

  5. Superdotman
    Commented
    1:22 PM 13 March 2008

    Pardon my vocabulary—I meant that since DF links point toward the content rather than John Gruber’s summaries/commentaries, Wittrodt doesn’t display the summs or comms.

    Actually, the best way (IMHO) to read DF would probably be to split the content pane into two frames—the top having the feed content, and the bottom having the link content. Making the frames resizeable, with the size cookied, would eliminate redundancy in the two frames—in BBC News (which only provides headlines in the feed), for example, I could leave feed content at 0% and link content at 100% all the time (unless my connection is slow that day and I only want to load the pages with interesting summaries). The answer to all interface problems is clutter!

    While I’m discussing interface concerns with no regard to (understanding of) the technical side, when will this text input field automatically switch line height? :P

  6. Matt
    Commented
    1:22 PM 14 March 2008

    I love the work in this style, and I would love to use it. Unfortunately, to my eyes, Ollicle Reflex has about three miles of space between lines, and my eyes literally get lost trying to go from one line to another.

    Alas, no matter what I try, I cannot tighten the line spacing. There’s obviously a lot of work in the style with JavaScript to keep lines far far apart, and no matter what adjustments I make (even in the javascript.js file), my eyes still get lost between lines. I can alter the style to use a different font for newsitem titles (as I prefer), and I can set the other fonts in NNW, and I can even add a div.blockquote style that mirrors blockquote (for 2-3 sites I read that insist on providing blockquotes like that), but I can’t get the lines close enough together for my eyes to easily follow one line to the next.

    I get bummed that the one thing you seem to have put the most work into is the one thing that prevents me from being able to use it.

  7. Justin Blecher
    Commented
    1:22 PM 14 March 2008

    nice work. i’ve been using ollicle reflex for a long time and look forward to the new tweaks you made.

    just a heads up that your posted .zip file is an SVN checkout (not an export), so it contains all the .svn folders.

  8. Commented
    1:22 PM 14 March 2008

    Superdotman: Ah of course, literally unreadable. The split screen is an interesting idea for link list style feeds. If I get it to work elegantly I’ll let you know. Keeping in mind that it can take little more than a click of the right arrow to open the page in the NNW browser.

    Matt: very odd, I presume your idea of three miles is larger than the line-spacing in the screenshots above, please email me a screenshot of how it looks at your end. Did adjusting the ratio variable is the js make any difference? Or just not enough?

  9. Commented
    1:22 PM 14 March 2008

    Thanks Justin. If that didn’t give it away this is my first SVN project. I looked up export and have replaced the zip without the .svn bits.

  10. eplekjekk
    Commented
    1:22 PM 8 July 2008

    bynkii.com and ollicle reflex doesn’t seem to like each other.

  11. Commented
    1:22 PM 8 July 2008

    @eplekjekk, appears something in my JavaScript (likely the del.icio.us tagometer) is tripping over the Google ad iframe embedded in the entries of that feed. I will certainly look into it, thanks.

  12. Vincenzo
    Commented
    1:22 PM 23 November 2008

    Images and text of feeds like this from this site http://listverse.com/history/top-20-great-us-civil-war-photographs/ are not correctly alligned. Things get better only when text is made very big. Is it a problem that can be solved?

  13. Commented
    1:22 PM 23 November 2008

    @Vincenzo, thanks for pointing that out. That feed is relatively unusual in it’s use of divs to lay out the text. Regardless it is causing some kind of bug in the js that I will look into.

    I noticed enlarging then reducing the text size sometimes kicks it into form.
